Description

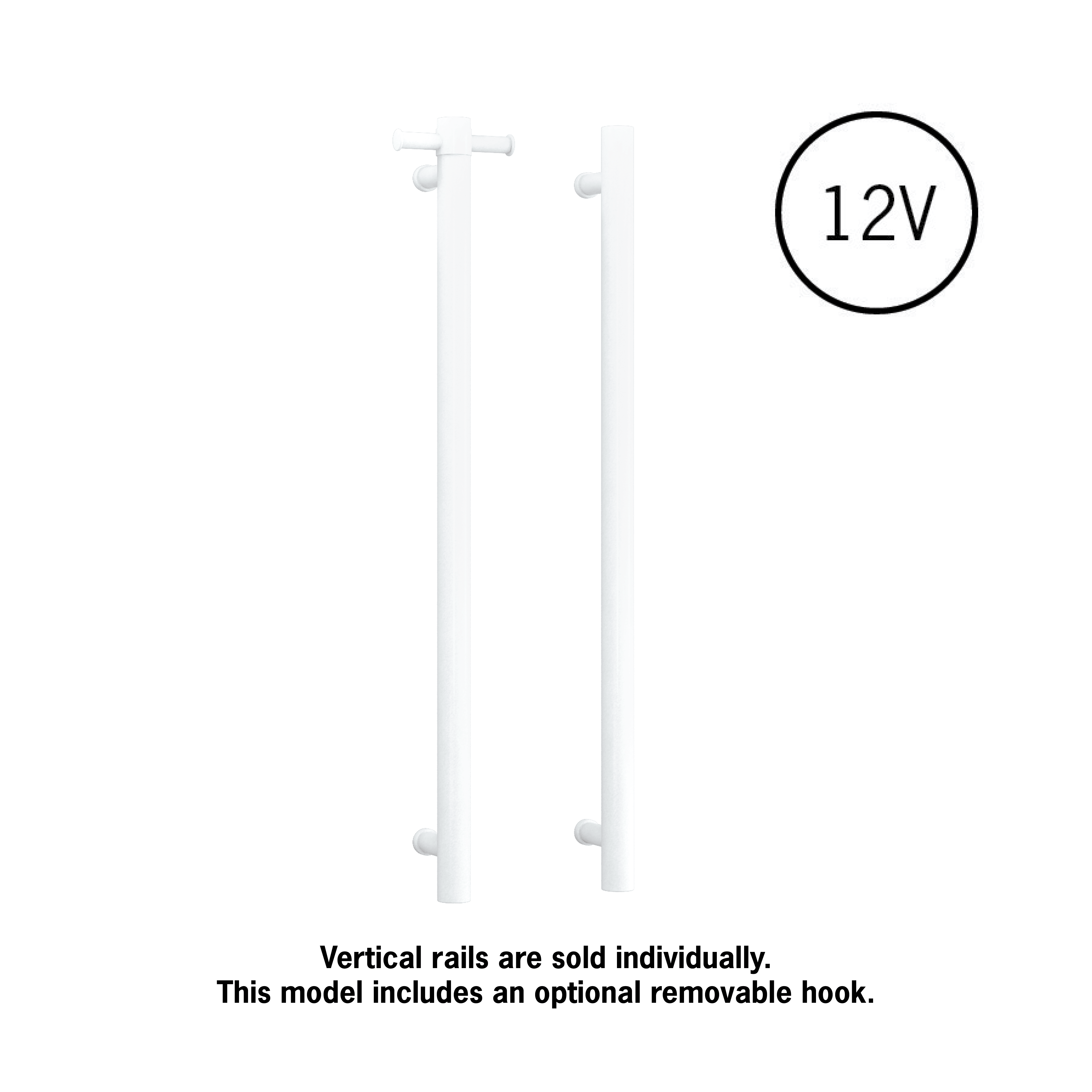

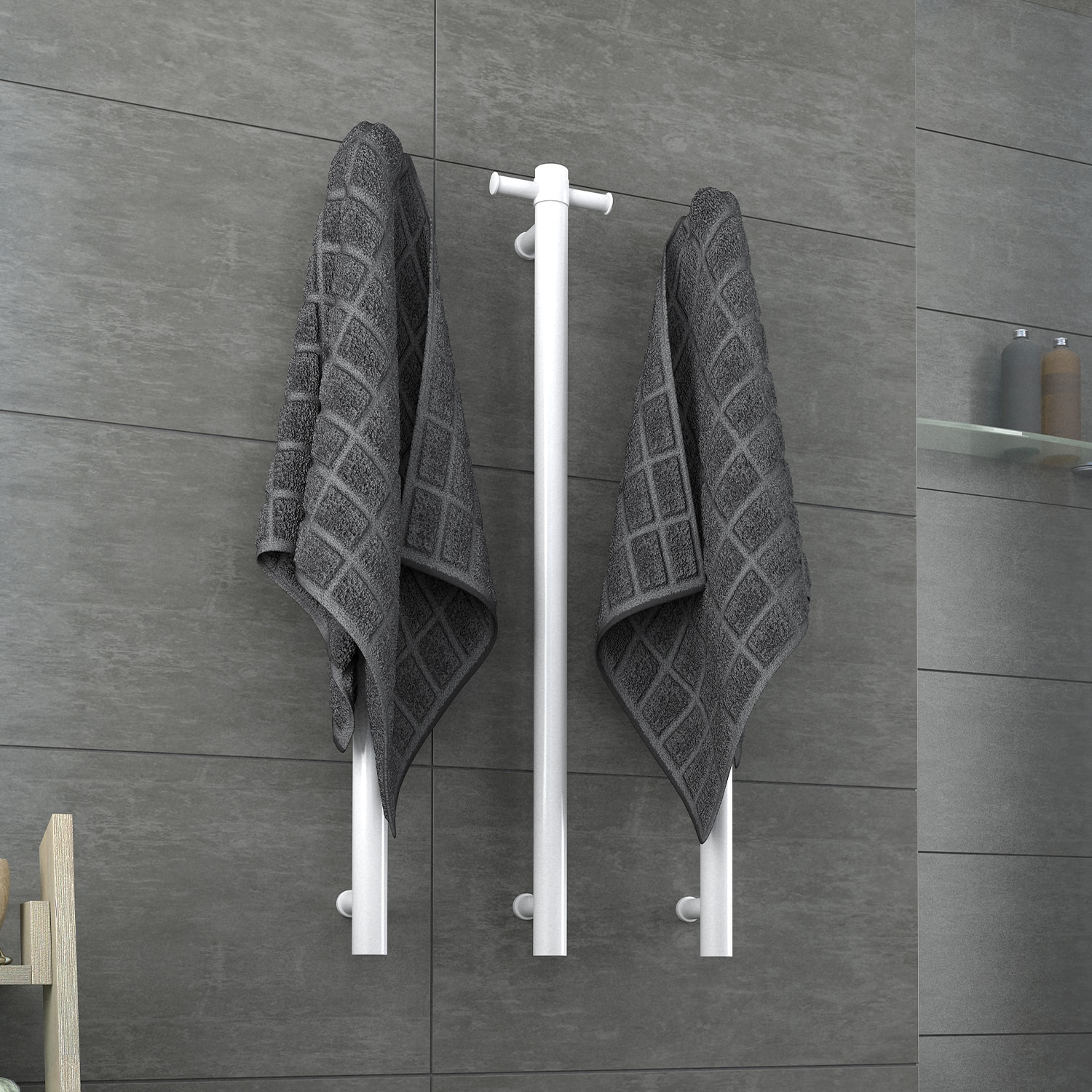

The VS900HSW Satin White Vertical Heated Towel Rail is an affordable luxury designed for bathrooms with limited wall space. This elegant single-bar straight round vertical rail features a beautiful satin white finish that complements white tapware and any bathroom aesthetic. Operating safely at 12-volt with an included transformer, it heats to 50–55°C with a towel draped over it. The optional towel hook makes it easy to hang your towel while creating a modern design statement.
Specifications
Product Code
VS900HSW
Output
30W
Voltage
12V
Number of Bars
1
IP Rating
IP55
Warranty
7 Years
Lead Length
1.3m
Finish
Satin White
Dimensions
W142×H900×D100mm
Key Features & Benefits
7-Year Warranty
Backed by a comprehensive 7-year manufacturer warranty for complete peace of mind.
Safe 12V Operation
Low-voltage 12V design with supplied transformer allows installation anywhere in the bathroom, even near water sources.
Elegant Satin White Finish
Premium satin white coating complements white tapware and works seamlessly with any bathroom decor style.
Easy Towel Hanging with Hook
Optional towel hook included makes it easy to hang and dry your towel. Heats to 50–55°C with towel draped over rail.
Safe, Efficient & Flexible
- Elegant satin white finish complements white tapware and modern bathrooms
- Top or bottom hardwired mounting positions for installation flexibility
- IP55 rated for safe bathroom use near water
- Can be retrofitted to existing tiled walls (power access to mounting points required)
- Each rail supplied with its own 12V transformer (no separate purchase needed)
- Optional towel hook included for convenient towel hanging
- Multiple rails can be spaced approximately 200mm apart for a cohesive look
- Round profile adds a softer, more elegant aesthetic to bathroom design
Frequently Asked Questions
Can vertical rails be retrofitted to existing walls?
Yes, vertical rails do not require in-wall mounting systems and come with all necessary mounts. They can be retrofitted to existing tiled walls provided your electrician can route power to the mounting points. The 12V transformer can be installed behind a switch plate or in the roof.
Do 12V rails get as warm as 240V rails?
Yes. Heat output is determined by wattage, not voltage. A 12V rail outputs the same heat as a 240V rail with equivalent wattage.
What temperature does the rail reach?
Without a towel, the rail heats to approximately 35°C. When a towel is draped over it, the towel insulates the rail and absorbs heat, causing the temperature beneath the towel to rise to 50–55°C for effective drying.
Do I need a separate transformer for each rail?
Yes. Each Vertical Rail is supplied with its own 12V transformer. We recommend one rail per transformer to avoid overloading. Wire each rail to its supplied transformer to ensure safe, reliable operation.
Where should the transformer be installed?
Install the transformer in the ceiling or wall cavity no more than 2 metres from the rail. If mounting in the wall cavity, it must be behind a switch plate for access and requires proper ventilation.
What is the recommended spacing between multiple rails?
Generally, spacing of approximately 200mm apart is recommended for a balanced look. However, this is a guide only—you may space them closer or further apart based on your preference. Account for any optional hooks attached to the rails.
Can I wire multiple rails to one timer?
Yes, you can wire multiple rails to a single timer. However, all rails on one timer operate together and cannot have individual schedules. Do not exceed the timer’s load rating (typically 1–16 amps). Each rail must be wired through its own transformer before connecting to the timer.
